Available spectroscopic modes are listed in the table below. To avoid saturation due to the strong emission from the diamond window, an ND filter with OD=2 is needed for observations in the LM band.
| Name | Wavelength range (um) | Resolving power | Note |
| KL | 2.0-4.0 | 210 | |
| 2.7-um | 2.40-2.98 | 660 | |
| LM+OD2 | 2.7-5.6 | 200 | OD2 means ND filter with OD=2 |
Saturation limits depend on wavelength as shown in the figures below, and the typical levels are summarized in the table below. In the water-vapor-absorbing bands, the saturation limits vary with PWV.
 |  |  |

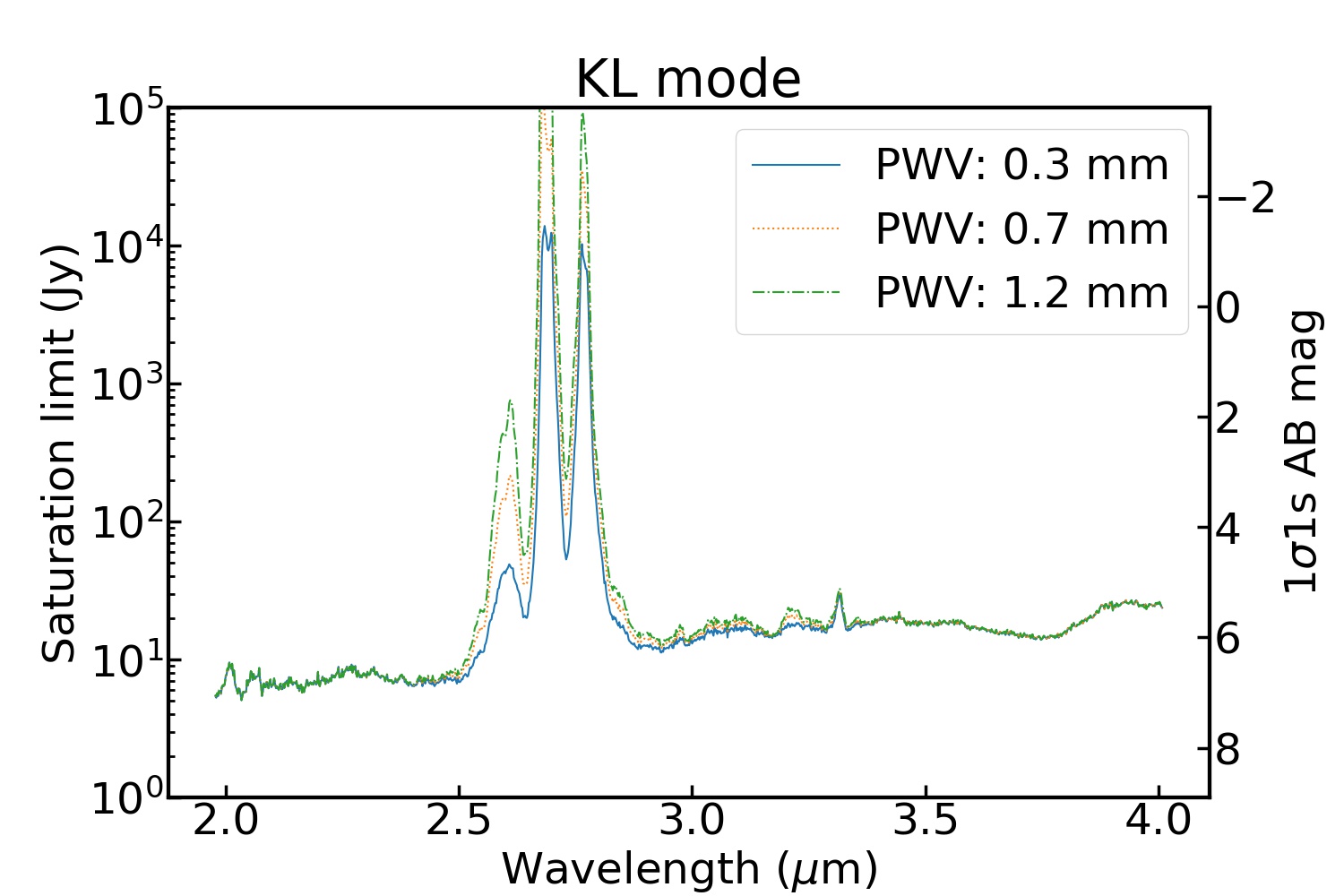

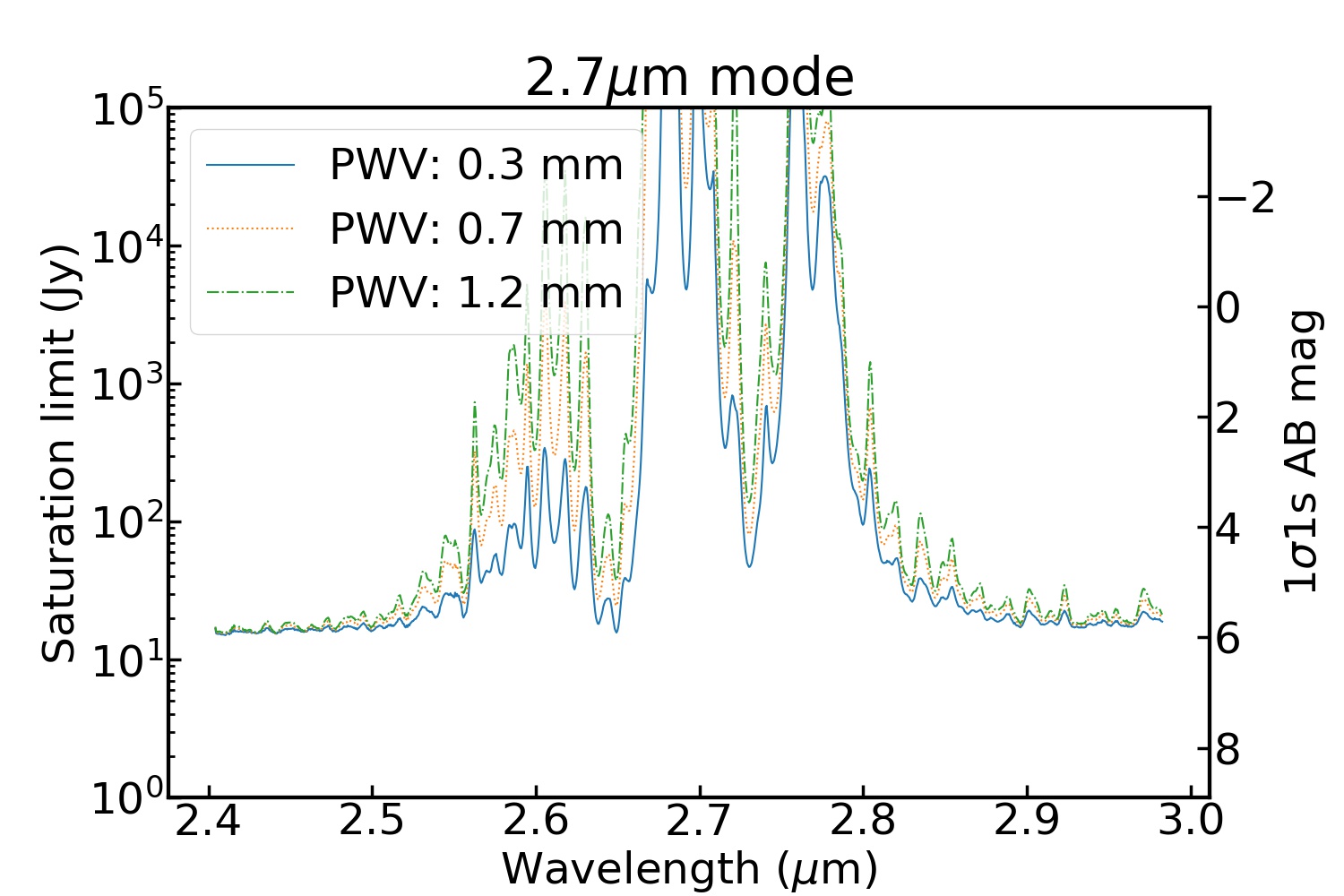

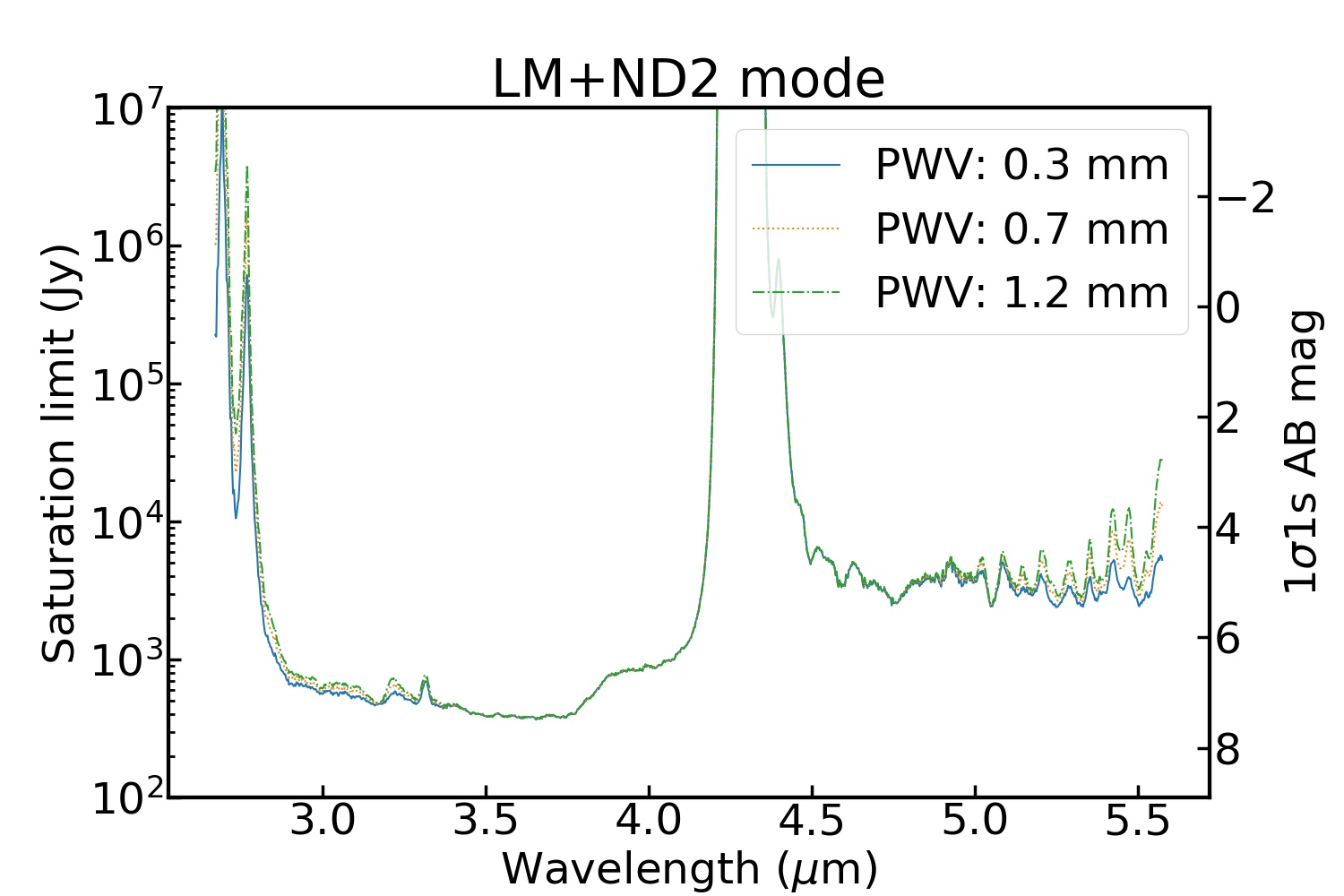

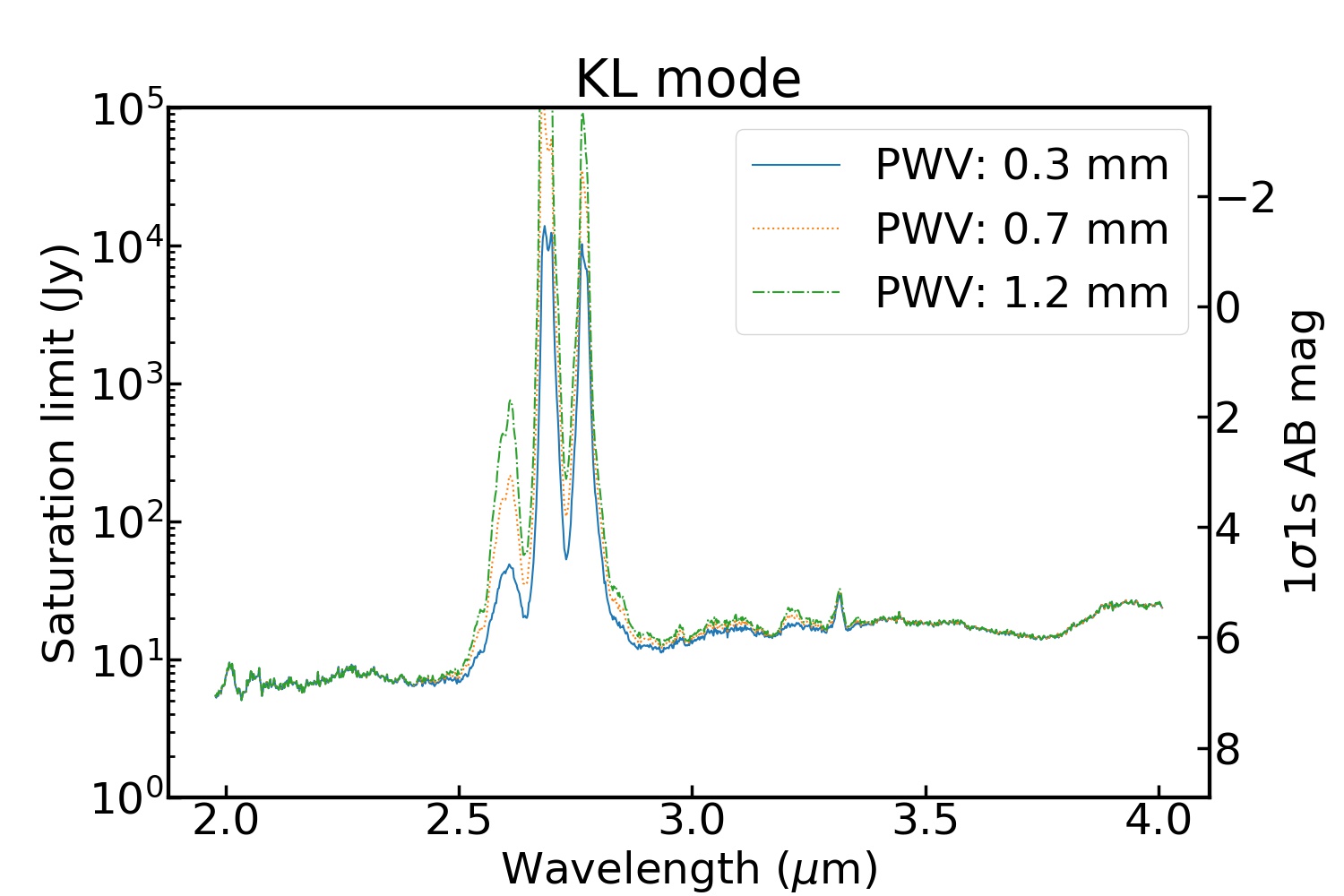

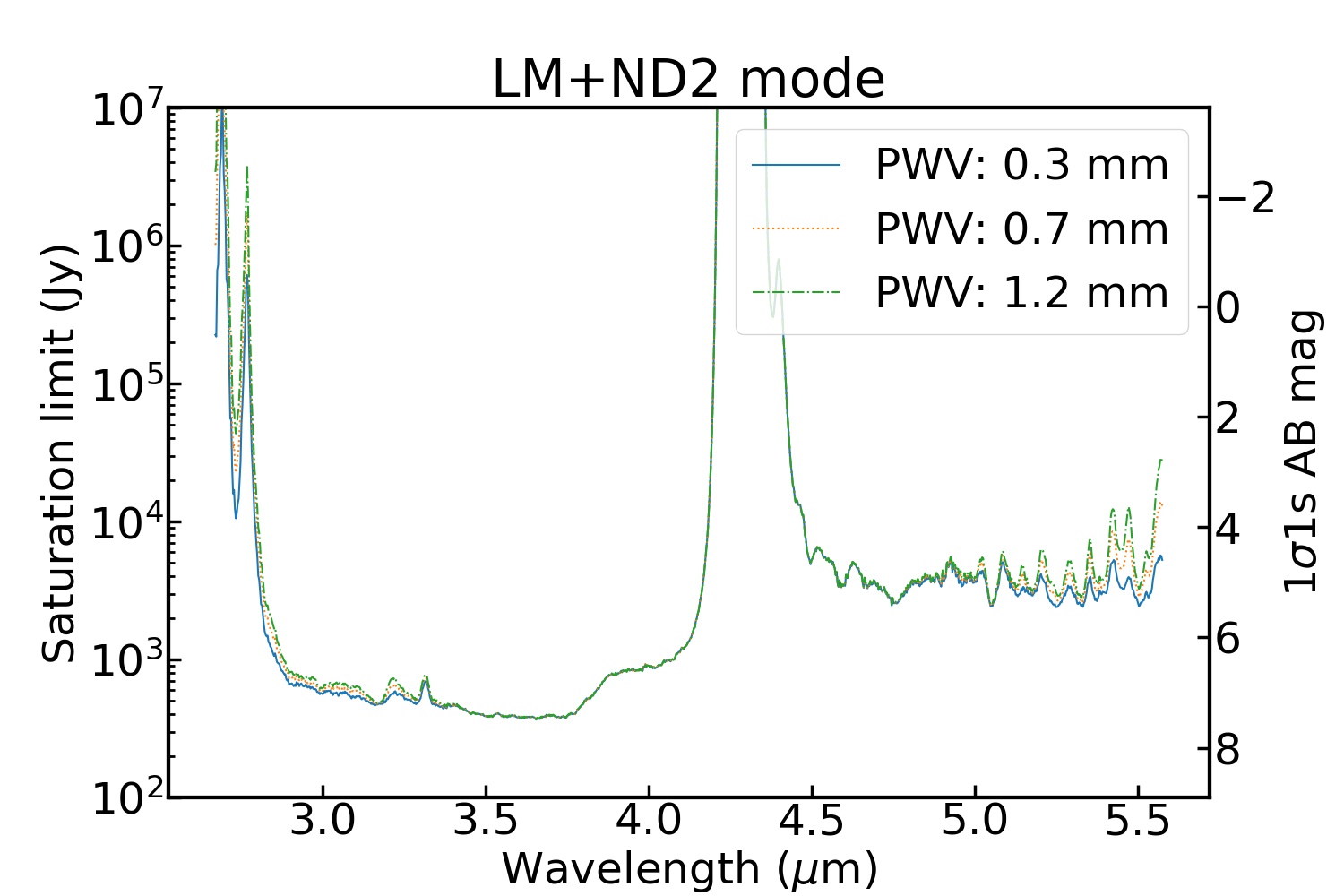

| Saturation limit of the KL band mode. | Saturation limit of the 2.7um band mode. | Saturation limit of the LM+OD2 band mode. |
| Name | Saturation limit |
| KL | 7 Jy |
| 2.7-um | 20 Jy |
| LM+OD2 | 400 Jy |
Noise-equivalent flux density for one exposure is calculated as shown in the figure below. Corresponding 1-sigma 1-sec sensitivity is also plotted. This calculation assumes aperture photometry with an aperture diameter of 2.5 times the FWHM of the PSF in the medium seeing condition (see here). Since readout noise (assumed 100e-/read) is the main noise source in short exposures, sensitivity improves with longer exposure times. PWV dependency is not significant in these bands. The truncation in the right edge of each band shows the longest exposure time before saturation except for the J band. The sensitivities of the L' and M' bands are significantly worse due to the ND filters and the strong absorption of the diamond window.
| &ref(): File not found: "sensitivity_dia_nir.jpg" at page "Observing/nir_spectroscopy_20230101"; |
| Noise equivalent flux density for one exposure. Corresponding 1-sigma 1-sec sensitivity is shown by dotted lines. |
