Brief Introduction to SWIMS

Simultaneous-color Wide-field Infrared Multi-object Spectrograph, or SWIMS, is capable of

and

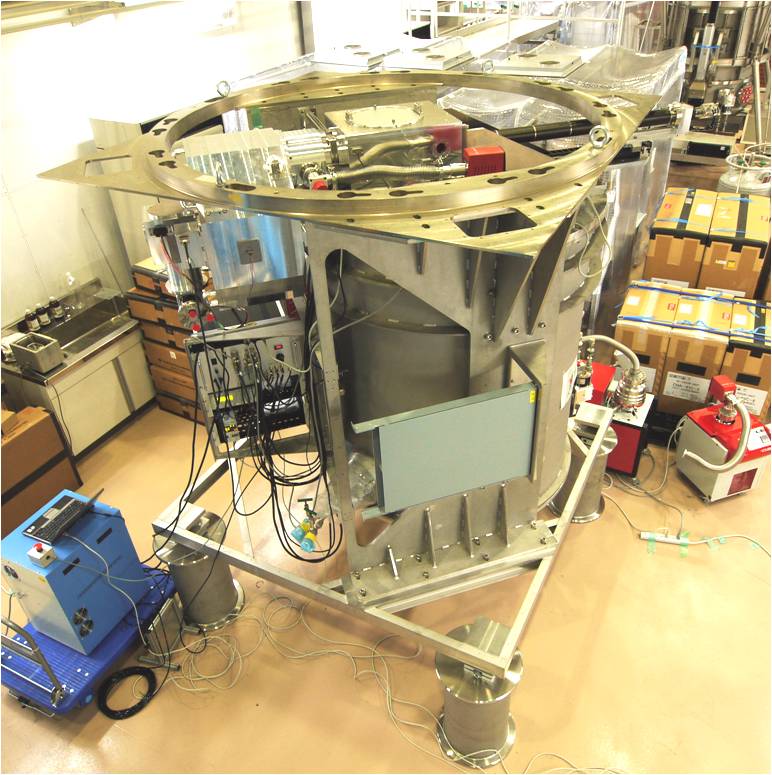

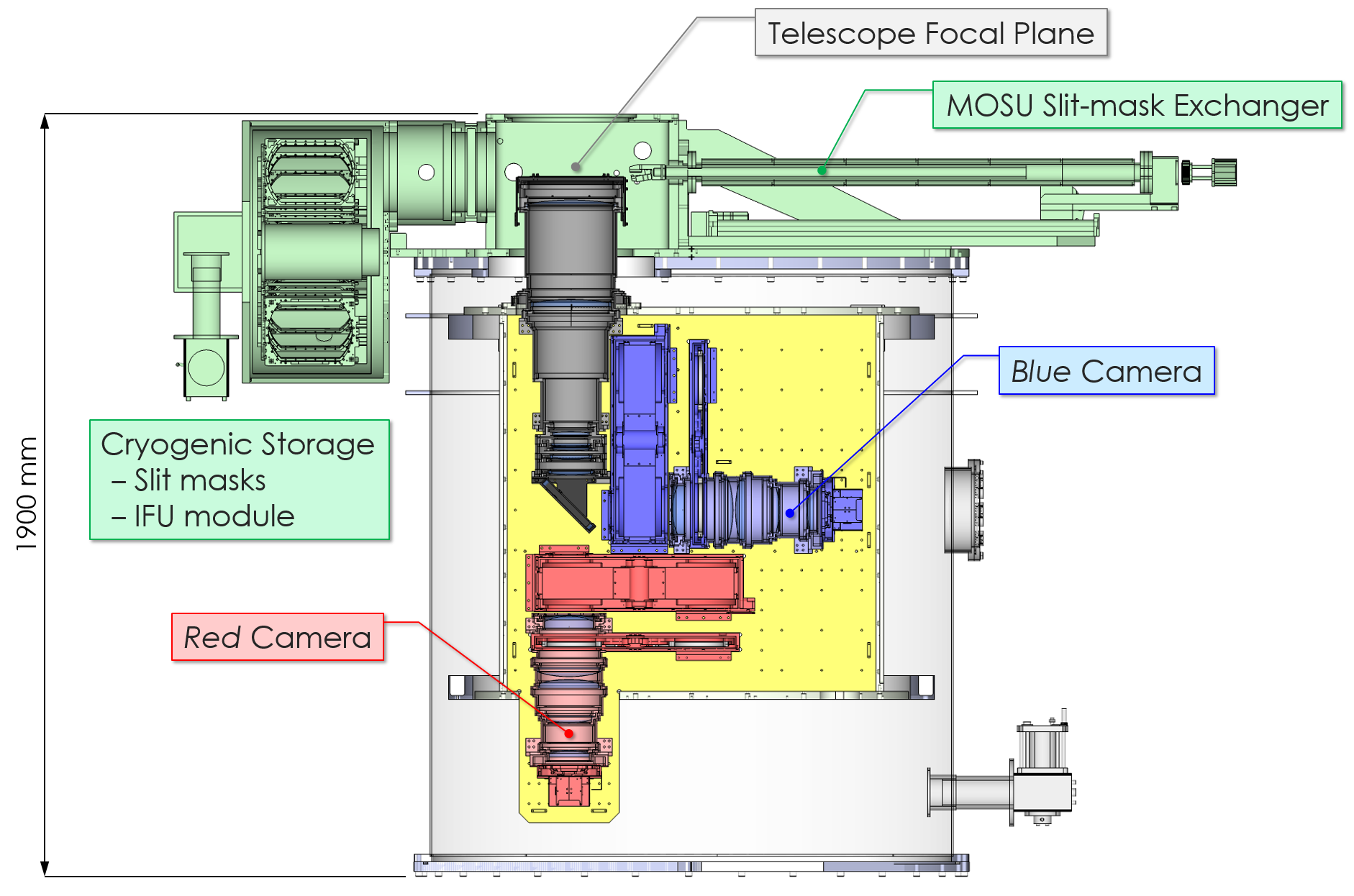

SWIMSComponent Assembly
thumbsthumbs

Instrument Papers

Field of Views

Field of view (FoV) of the telescope is covered with multiple HAWAII-2RG arrays (λ_{cut}=2.5 μm, ∼ 0.2-mm or ∼ 10-pixel gap between arrays).

TAOSubaru
Imag. FoVφ9.6' (∼ 8.6' × 8.6')6.6' × 3.3'
Spec. FoV3.7' × 8.6'2.8' × 3.3'
# of arrays per arm4
(4096 × 4096 pixles)
2
(4096 × 2048 pixels)
Pixel scale (arcsec/pix)0.1260.096
Array configurationthumbs
thumbs
thumbs
thumbs

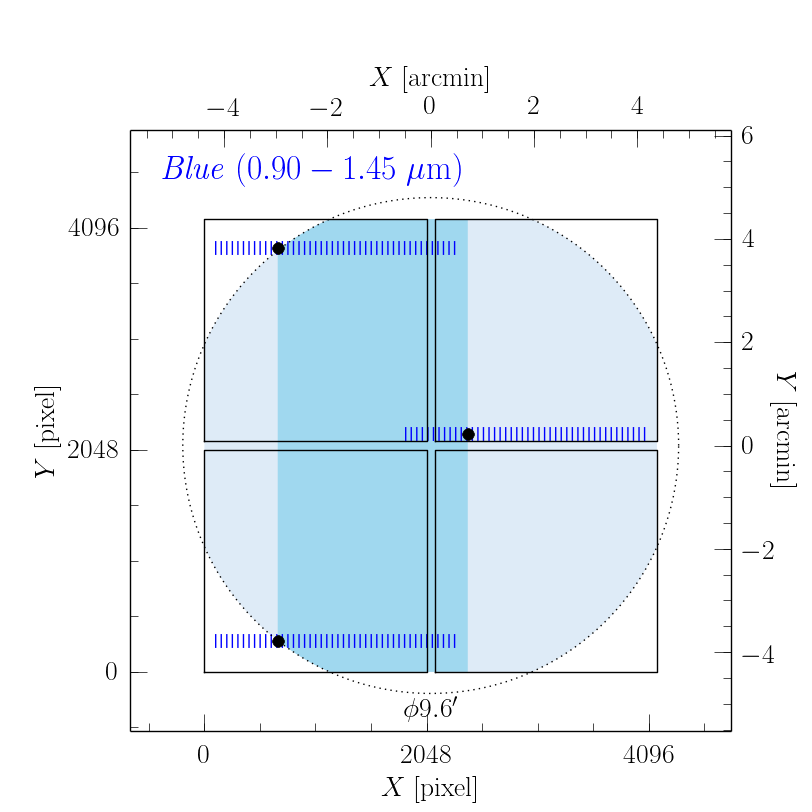

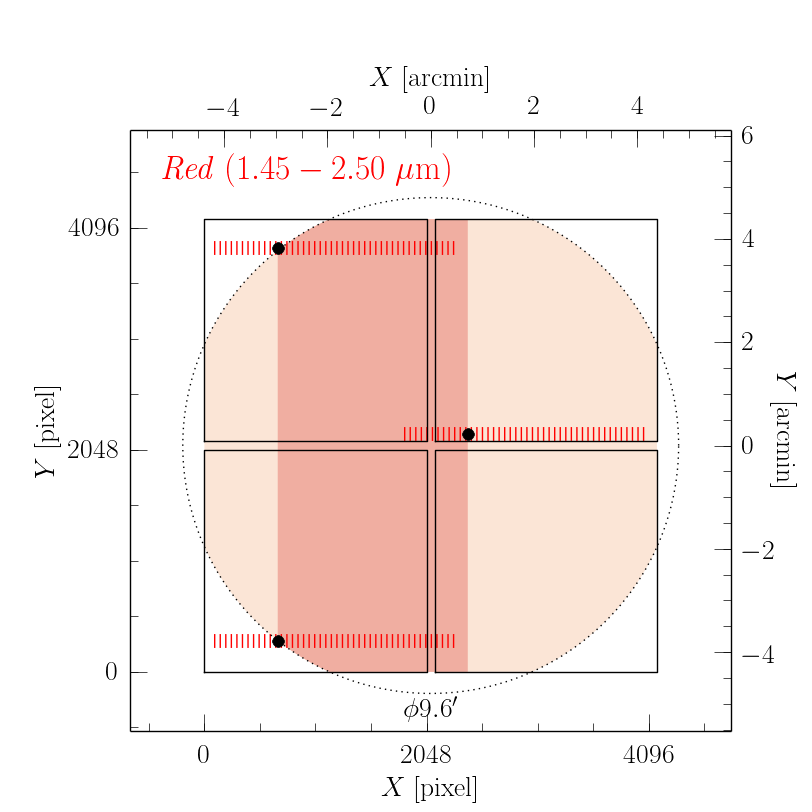

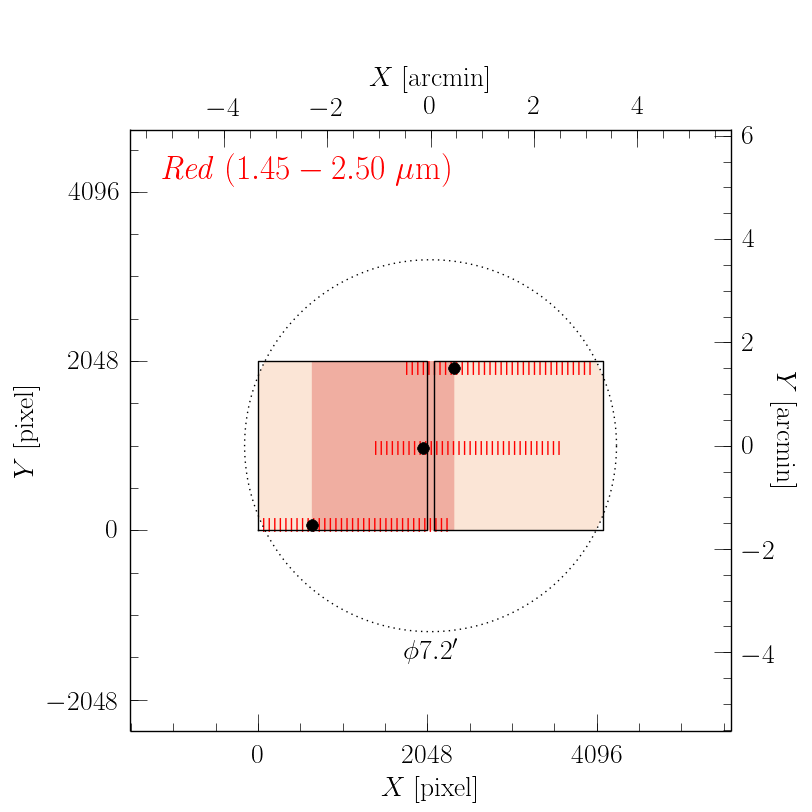

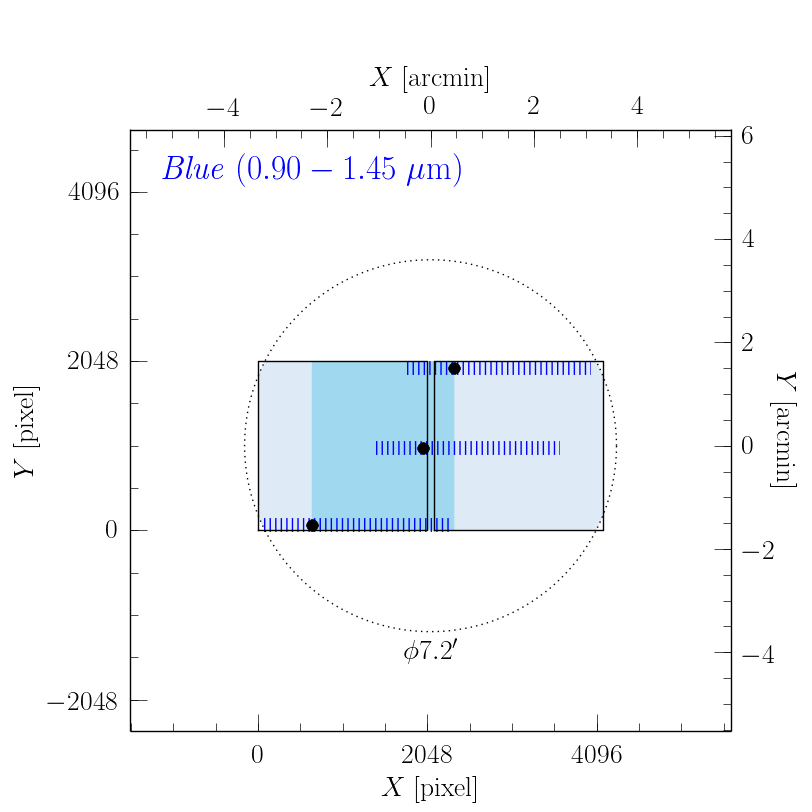

Light-shaded regions show the FoV for the imaging mode while dark-shaded regions for the spectroscopy mode (for full range of spectra).

Black dots represent positions of source in the imaging mode which are also equivalent to the spectral positions of undeviated wavelength (λ ∼ 1.027 μm for blue, ∼ 1.734 μm for red).

Each stripe indicates the full range of the spectrum obtained (from shorter on the left to longer wavelength on the right). Note that any optical aberrations are not considered which would make the spectrum slightly broaden.

Available filters/grisms

Blue (0.9-1.45 μm)Red (1.45-2.5 μm)
Broad-bandY (λc=1.03, Δλ=0.09), J (1.25, 0.16)H (1.64, 0.30), Ks (2.14, 0.32)
Medium-bandJ1 (1.17, 0.13), J2 (1.29, 0.12)H1 (1.50, 0.02), H2 (1.61, 0.11), H3 (1.73, 0.12), K1 (2.02, 0.14), K2 (2.17, 0.14), K3 (2.31, 0.13)
Narrow-bandNB1244# (1.244, 0.012), NB1261# (1.261, 0.012), Paβ (1.292, 0.040), Paβ-off (1.326, 0.034)NB1630# (1.630, 0.016), NB1653# (1.653, 0.016), Paα (1.875, 0.020), Paα-off (1.945, 0.040), NB2137# (2.137, 0.021), NB2167# (2.167, 0.021)
GrismzJ (2.49 Å/pix, R ∼ 700-1100 w/ 0.5" slit)HKs (4.90 Å/pix, R ∼ 600-1000 w/ 0.5" slit)

Filters followed by "#" are those for SWIMS-18 survey. Requests for use for any other purpose will be also welcomed.

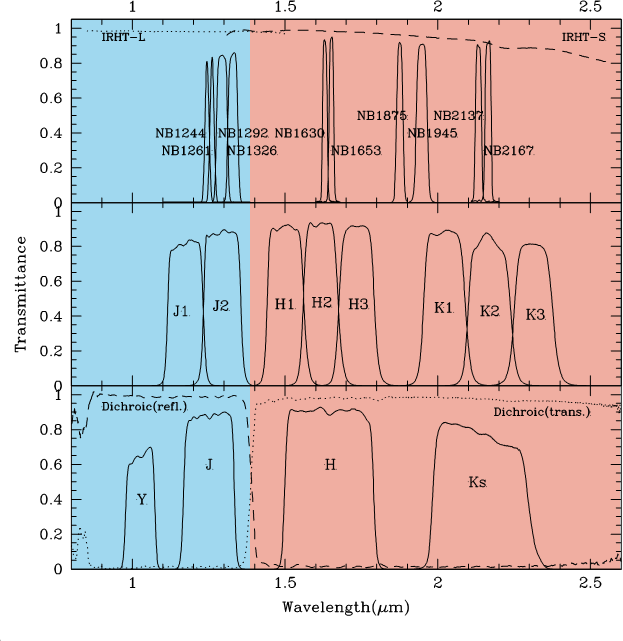

Transmission curves
thumbs

ASCII data for each filter transmittance will be available soon. Please contact us for urgent use.

Integral Field Unit

A compact & lightweight image-slicer IFU will be installed into the MOSU cryogenic storage.

Note that the following parameters may be subject to be changed.

TAOSubaru
λ (μm)0.9-1.45 (blue) & 1.45-2.5 (red)
R (=λ/Δλ)900-1400 (blue), 700-1200 (red)
FoV18.4" × 13.7"14.0" × 5.2"
# of slice2613
Slice width0.5"0.4"

Sensitivity

Total throughput including the telescope is estimated to be ∼ 0.4 for imaging and ∼ 0.3 for spectroscopy.

Expected sensitivities (AB mag) on the Subaru telescope are calculated with assumptions of seeing size=0.5 arcsec (photometry aperture radius=0.5 arcsec for point source), exposure time=1 hr, and S/N=5.

Sensitivities on the TAO 6.5-m telescope are supposed to be ∼ 0.3 mag shallower due to smaller light-collecting area.

Current Status

Coming soon.

Development Timeline

Coming soon.
